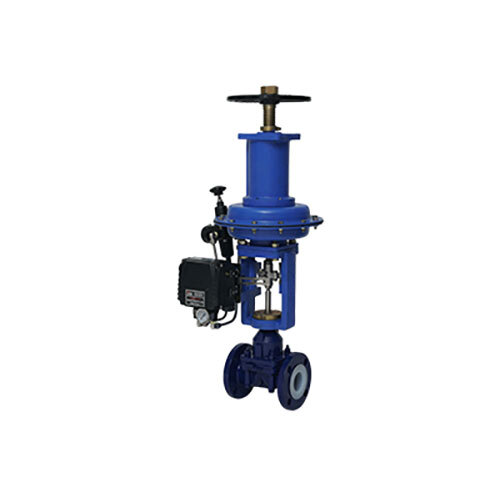

PTFE Lined Diaphragm Valves

PTFE Lined Diaphragm Valves

Product Details:

X

PTFE Lined Diaphragm Valves Price And Quantity

  • 100 Number

Product Description

We are among the topmost manufacturer, exporter and supplier of Diaphragm Valves. Robustly constructed, these valves are used for regulation of liquids and gases. The offered valves are manufactured at our hi-tech production unit using the finest quality raw materials and sophisticated techniques under the guidance of deft professionals in compliance with set industry norm. Apart from this, our respected clients can easily avail these Diaphragm Valves from us at market-competent prices.

Features:

  • Rugged design

  • Durability

  • Rust resistance

  • Impeccable finish

Dimension Table:

Size (NB)

L-/+3

OD

H

T

100 mm

312

288

380

23

150 mm

408

280

525

26

Material Specification

DESCRIPTION

QTY.

MATERIAL

BODY

1

PP / ISO.PP/ PPH/ PVDF

BONNET

1

CI/CS EPOXY PAINTED

BOLTS & NUTS

4

MS GALVANIZED / SS-304

HAND WHEEL

1

POLYPROPYLENE

SLEEVE SPINDLE ASSLY.

1

SS 202 / SS 304 / SS 316

COMPRESSOR

1

CAST IRON / CAST STEEL

DIAPHRAGM

1

PTFE

RUBBER PAD

1

EPDM

POSITION INDICATOR

1

PP / PVC

INDICATOR CAP

1

POLYCARBONATE

HANDWHEEL NUT

1

BRASS
